Overview

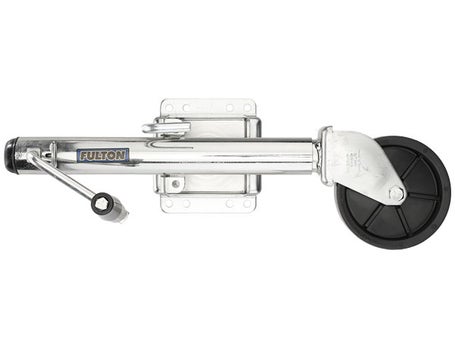

Time-tested and battle-proven, the Fulton Swing-Away Bolt-On Jack is designed for use with marine and utility trailers. Fulton, the industry leader for high performance marine jacks, constructed the bolt-thru swivel mounts from 3D formed heavy-gauge steel stampings and a proprietary bushing material to provide a mount with minimal deflection and maximum support. Each jack also features a Z-Max 600 Clear Zinc finish for industry-leading corrosion protection. Don’t leave the fate of your trailer to anything but the best, the Fulton Swing-Away Bolt-On Jack features a dependable design proven to last.
-Mounts fit up to a 3”x5” trailer frame
1200lb model - #XP10 0101
-6" wheel diameter
-Bolt-on, mounting hardware for up to 5” frame included
-Handle & wheel unassembled
Capacity: 1,200lbs
Travel: 10"
Retracted: 12.5"
Extended: 22.5"
Clearance: 10.5"
1500lb model - #XP15 0101
-8" diameter spoked wheel
-Bolt-on, mounting hardware for up to 5” frame included
-Handle & wheel unassembled
Capacity: 1,500lbs
Travel: 10"
Retracted: 13"
Extended: 23"
Clearance: 12.4"
