Humminbird 700 Series Sonar - $199.99

The Humminbird 700 Series Sonar features crystal clarity and bright vivid detail, thanks to its unique high-resolution displays. Every detail counts when using powerful Side Imaging, Dual Beam PLUS, or optional QuadraBeam Sonar.

Dual Beam PLUS: Get the best of both worlds, with selectable narrow and wide beams you can view individually, or melded into one display. Features precision, 20° beam that is optimized for excellent bottom detail, and reveals fish hidden in bottom clutter, along with wider, 60° beam provides greater coverage for fish and bait fish. Beams may be viewed separately, side by side, or blended together for the most complete picture. 1x bottom coverage allows you to find fish and structure in an area equal to your depth.

Optional QuadraBeam PLUS: provides full 90° coverage from side to side or directly below. DualBeam PLUS 60° and 20° beams scan below the boat and two fan-shaped 35° beams look to the sides, to shows whether fish are to the right, left or below the boat for cast placement. Unique display shows you two separate views, below and to the sides. Scans an area equal to twice your depth, revealing more fish and structure.

Side Imaging Sonar: Offering amazingly clear, picture-like images of fish, the bottom and structure, it is the ultimate structure-finding tool. Its massive coverage - 480ft from side-to-side (240ft in each direction) - allows you to scan in mere minutes what used to take hours. Its high frequency sonar (not a camera) cuts through murk with crystal clarity. (Select models only - see chart below)

Down Imaging Sonar: Humminbird pointed their Side Imaging technology in a new direction - straight down. Now you can see the detail of what is happening below your boat.  Timber, brush, bridge pilings, rocks and any other structure will pop with stunning detail as you patrol the water. (Available on select models only - see chart below)

50-Channel GPS: With trackplotting, chartplotting, GPS speed, and Humminbird Unimap, covering the continental U.S.A. coastline and inland lakes and rivers at a resolution of 30 meters per pixel resolution. On the coast, this clearly shows features as small as canals, and many coastal navigation lights. Inland, the UniMap features virtually all recreational lakes and rivers, plus hundreds of thousands of small lakes that don't appear on other charts.

All 700 Series Units may be used with QuadraBeam PLUS, WeatherSense, CannonLink, InterLink, Wireless Sonar Link, or Humminbird PC.

Includes:

-Control Head
-Transducer with Temperature Sensor
-Power Cable
-Mount
-Transducer Mounting Hardware
-Unit Cover

Model Display Sonar Power Output Depth GPS
718 5" Diagonal
320V x 320H FSTN LCD
16-Level Grayscale
Dual Beam PLUS
200kHz/20° @ -10db
83kHz/60° @ -10db
2400W(PTP)
300W(RMS)
1000 ft. GPS Capable
788ci HD Combo 5" Diagonal
640V x 640H
256 Color TFT
Dual Beam PLUS
200kHz/20° @ -10db
83kHz/60° @ -10db
4000W(PTP)
500W(RMS)
1500 ft. 50 Channel
GPS included
788ci HD DI Combo 5" Diagonal
640V x 640H
256 Color TFT

Dual Beam PLUS
200kHz/25° @ -10db
455kHz/16° @ -10db
Down Imaging
455kHz/75° @ -10db
800kHz/45° @ -10db

4000W(PTP)
500W(RMS)
Dual Beam
600 ft.
DI
350 ft.

50 Channel
GPS included
798ci HD SI Combo 5" Diagonal
640V x 640H
256 Color TFT
Dual Beam PLUS
83kHz:60° @ -10db
200kHz:20° @ -10db
Side Imaging
455kHz:(2) 86° @ -10db
(180° Total coverage)
4000W(PTP)
500W(RMS)
1500ft.(2D)
150ft.(SI)
50 Channel
GPS included

Please Note: These models are not available for order outside of the United States.

Humminbird New Product Video

Comments: SIDE immaging has made me a way better bass fisherman i have one in the counsel and one on the trolling motor this thing is magic much recomended.

From: Tom: NY

***Note: If you have questions about this product or need assistance with an order please email your questions to info@tacklewarehouse.com

View Large

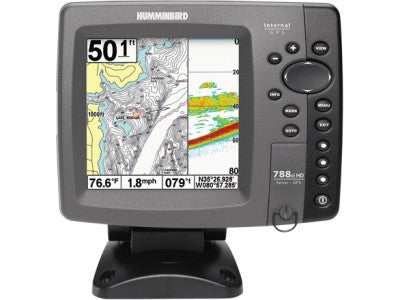

Humminbird 700 Series Sonar
