Overview

Delivering revolutionary picture-like, 3-Dimensional views of underwater terrain and fish-holding structure, the Lowrance StructureScan 3D Transducer and Module is built for use with the advanced Lowrance HDS Gen3 Fishfinder/Chartplotters.

By slowly idling over a potential fishing area with its wide, 180-degree scanning range, Lowrance StructureScan 3D allows anglers to quickly search for key areas and cover - such as abrupt depth changes, points, ditches, rockpiles, brushpiles, weedbeds standing timber, wrecks and more. With this unique imaging view, anglers gain a better understanding of where fish and structure are located in relation to their boat.

The contours below the water's surface can be shown to the sides of the boat - up to 600 feet port and starboard - with incredibly detailed, high-definition views.

StructureScan 3D provides multiple views, including two-dimensional DownScan Imaging and StructureScan HD, as well as, the new, realistic three-dimensional views. Using preset virtual point-of-view angles or ScanTrack pan-tilt-rotate control mode, you can adjust the view and perspective beneath your boat. You can also combine custom HD and 3D views to increase your understanding of how fish relate to cover and to search fishing areas more effectively.

StructureScan 3D is powered by a multi-beam sonar technology, and to ensure the clearest possible SideScan views, the StructureScan 3D transducer design has been enhanced with an increased number of sensors for greater imaging performance.

Leading Edge Scanning Reference - provides a clear graphical illustration of sonar beams as they intersect with bottom contours. The depth and range of the most recently scanned area are shown as red fan-shaped markers directly under the boat. Leading Edge also includes a depth scale that shows greater depth detail as you zoom in, giving you a better sense of target depth.

SelectScan Target Identification - automatically shades fish-holding cover and suspended targets in a color that contrasts the selected color palette, making target identification quicker and easier than ever before.

Vertical Enhancement Control - is a user-selectable scale that will apply on-screen emphasis to vertical drops and crucial depth contour changes, making them easier to identify relative to the surrounding underwater terrain. Vertical Enhancement makes even the slightest depth changes more visible.

Waypoint Overlay - revisiting fishing areas, structure and other underwater features is easy with the Waypoint Overlay feature. Use the waypoint keypad to save a waypoint at the boat location, or switch to cursor mode, and save a waypoint over specific targets, baitfish or cover.

Automatic 3D Image Settings - fine-tuned 3D image settings are set by your HDS Gen 3 default configuration and StructureScan 3D Module. Adjustments can be made to Surface Clarity and Contrast settings using the on-screen slider-bar. Surface Clarity reduces on-screen surface clutter, by decreasing the sensitivity of the receiver near the surface. Contrast lightens/darkens the color palette to make fish and structure easier to see.

Ethernet Connectivity

Ethernet ports allow connectivity for up to three networked devices.

#000-12395-001

For Use With: Lowrance Gen3 HDS Fishfinder/Chartplotters

What's in the Box:

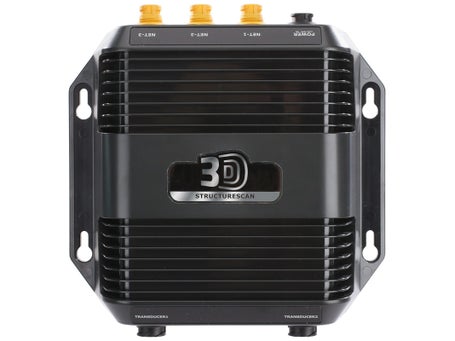

-StructureScan 3D Module
-Ethernet Cable (15ft)
-Power Cable & Fuse
-Installation & Operations Manuals
-StructureScan 3D Skimmer Transom-Mount Transducer

-------------

Please Note: This model is not available for order outside of the United States.
