Overview

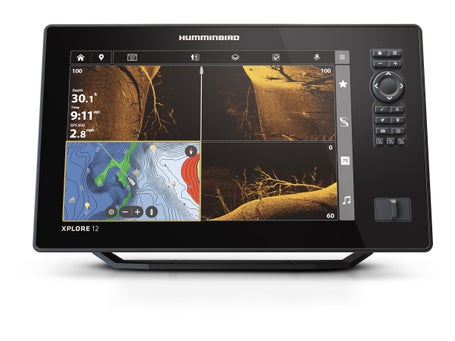

Designed to bring competitive anglers easy access to epic days of fishing, the Humminbird Xplore 12 Fishfinders deliver stunning HD imagery and unmatched clarity that make fish appear easily so there’s less guessing and more catching. Featuring a smarter, faster, and easy-to-use interface, anglers experience fishing faster than ever with a 12-inch Intuitive Cross-Touch screen and high-def display engineered for use with polarized eyewear.
Find your fishing spots efficiently with the included LakeMaster and CoastMaster charts, an updated waypoint management system, and quick access to everything with a lightning-fast touchscreen and shortcuts to your favorite tools and technologies. Compatible with Humminbird’s versatile One-Boat Network, the Humminbird Xplore 12 Fish finders connect seamlessly with all Minn Kota products like advanced GPS navigation and shallow water anchors for maximum navigation and operability.
Included in the box:
- XPLORE Fishfinder
- Power Cable
- Unit Cover
- Gimbal Mount w/hardware and knobs
Features:
- Intuitive Cross Touch Screen
- Quick-Launch Home Screen
- High-Def Display
- Engineered for Polarized Eyewear
- Plug& Play Minn Kota Capability
Connectivity: CE, NMEA 2000, Bluetooth, Ethernet, Wi-Fi, MFi
Sonar Capability: MEGA Live 2, MEGA Live Imaging, MEGA 360 IMaging
| Model | CHO | CMSI+ |
| Product Code | 412020-1CHO | 412020-1 |
| Display Size - Diagonal | 12.1" | 12.1" |
| Display Pixel Matrix | 1280H x 800V | 1280H x 800V |
| Transducer Included | N/A | XM 14 HW CMSI T |
| Memory Card Slot | Dual Micro SD | Dual Micro SD |
| Sonar - Standard | Dual Spectrum CHIRP, MEGA Side Imaging +, MEGA Down Imaging+ | Dual Spectrum CHIRP, MEGA Side Imaging +, MEGA Down Imaging+ |
| Sonar - Optional | 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low | 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) | Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) |
| Sonar-Frequencies Supported | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA |
| Depth-Sonar | 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer) | 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer) |
| CHIRP - Imaging Frequencies Supported | 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz) | 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz) |
| Depth-Down Imaging | 200 ft (MEGA), 400 ft (455 kHz) | 200 ft (MEGA), 400 ft (455 kHz) |
| Range-Side Imaging (Side-To-Side) | 800 ft (455 kHz), 250 ft (MEGA) | 800 ft (455 kHz), 250 ft (MEGA) |
| Interface | Touch Screen, Keypad Control | Touch Screen, Keypad Control |
| Power Input | 10.8-20 VDC | 10.8-20 VDC |
| Power Output Peak-to-Peak | 8000 Watts | 8000 Watts |
| Power Output RMS | 1000 Watts | 1000 Watts |
| Screen Snap Shot | Included | Included |
| Sonar Recording | Included | Included |
| Mount-Standard | Gimbal | Gimbal |
| Mount-Standard Size | 14.145 in W x 8.911 in H x 3.989 in D | 14.145 in W x 8.911 in H x 3.989 in D |
| Mount-Optional | In-Dash Mounting Kit | In-Dash Mounting Kit |
| Mount-Optional Size | 14.145 in W x 8.911 in H x 3.989 in D | 14.145 in W x 8.911 in H x 3.989 in D |
| Transducer Mount Location | N/A | Transom |
| GPS Chartplotting | Included | Included |
| GPS Receiver | Internal | Internal |
| GPS Trackplotting | Not Supported | Not Supported |
| Waypoints, Routes, Tracks/Points | 10,000, 50, 50/20,000 | 10,000, 50, 50/20,000 |
