Overview

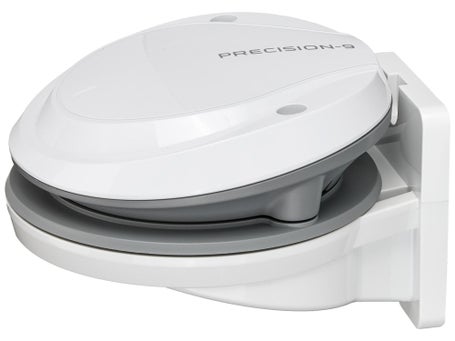

A highly advanced addition to any serious freshwater or saltwater fishing boat, the Lowrance Precision 9 Compass is built with an internal array of solid-state sensors measuring motion and orientation on nine axes. Designed to easily connect to your onboard NMEA 2000 network, the Precision 9 Compass supplies critical data like heading, rate of turn, and pitch and roll to your vessel's autopilot, radar, and navigation systems. After proper calibration, the Precision 9 Compass can produce impressive heading accuracy of plus or minus 2 degrees.
Capable of mounting on a mast, bulkhead, console, or variety of other locations, the Precision 9 compass includes an adjustable mounting bracket and a single cable for a quick and simple NMEA 2000 connection. Boasting a substantial IPX7 waterproof rating, the Lowrance Precision 9 Compass brings an added level of refinement to your vessel.
Included Accessories/Extras:
-N2K-T-RD Network T-Connector
-N2KEXT-15RD 15-foot Network Extension Cable
Key Features:
-Internal solid-state sensor array
-NMEA 2000 connectivity
-Supplies heading, rate of turn, pitch/roll data
-Heading accuracy of +/- 2° after calibration
-Versatile mounting options
-Adjustable mounting bracket
-IPX7 waterproof rating
| Lowrance Precision 9 Compass | |
| Material | Plastic |
| NMEA 2000 Connectivity | 1x NMEA 2000 Micro-C port, 1 LEN |
| Power Consumption Max | 0.4W (N2K Load 1 LEN) |
| Supply Voltage | 12V DC (8–16V DC) via NMEA2000 |
| Operating Temperature Range | -13 to + 149ºF (-25 to + 65ºC) |
| Storage Temperature Range | -22 to + 158ºF (-30 to + 70ºC) |
| Waterproof Rating | IPX7 |
| Heading Sensor Accuracy | +/-2 degrees after calibration |
| Heading Sensor Data Available | Magnetic heading, rate of turn, pitch/roll, heave |
| Compass Safe Distance | 1.7 feet (0.5 meters) |
| Sensor Type | Solid state, rate stabilized |
| Dimensions W x H x D | 1.42 x 4.69 x 4.69 inches (36 x 119 x 119 millimeters) |
| Mounting Type | Bracket, bulkhead |
| Module Weight | 5.8 ounces |
| Bracket Weight | 4.6 ounces |
| Warranty Period | 2 years |
