Overview

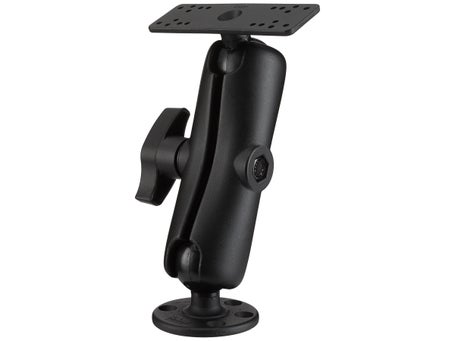

Providing secure, mounting for your larger electronics, the Ram-Mount D-115 Marine Electronics Mount offers a rock-solid mounting that keeps high end graphs secure, yet easily adjustable. Manufactured using powder-coated, marine-grade aluminum, the Ram-Mount D-115 Marine Electronics Mount features a larger, 2.25” diameter D-size ball that provides bolstered strength, while the arm and patented design allow for easy view changes. An easy fit for 9-12” fishfinder gimbals, the Ram-Mount D-115 Marine Electronics Mount is a must-have for owners of oversized electronics.
Specifications:
Overall length - 10.7"
Socket-to-socket length - 6.88"
Top plate size - 6.25" x 2"
Base plate diamete - 3.68"
Ball/socket size - D size (2.25")
Weight Capacity: Up to 6lbs
Compatibility:
Garmin
GPSMAP 8410
GPSMAP 8410xsv
GPSMAP 8412
GPSMAP 8412xsv
GPSMAP 8610
GPSMAP 8610 xsv
GPSMAP 8612
GPSMAP 8612xsv
GPSMAP 922
GPSMAP 922xs
GPSMAP 942
GPSMAP 942xs
EchoMAP Chirp 72-956 Series
ECHOMAP Plus 92-97 Series
Strike Plus 9sv
Fishfinders and GPS Chartplotters
Lowrance
HDS Carbon 7
HDS LIVE 9
HDS LIVE 12
Hook Reveal 7 Series
Hook Reveal 9 Series
Hook-9
Fishfinder and GPS Chartplotters
Humminbird
Fishfinders and Chartplotters
Raymarine
Fishfinder and GOPS Chartplotters
Part Number - RAM-D-115
