Overview

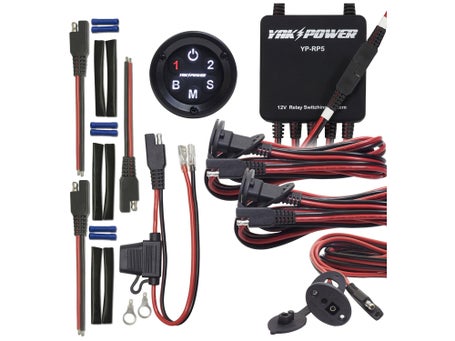

Putting instant control of your kayak electronics at your fingertips, the Yak Power Complete Kayak Power Systems deliver an easy, seamless way to operate fish finders, lights, phone chargers, and other 12-volt accessories. Providing everything that's needed besides the battery, each Kayak Power System includes integrated power ports, a battery terminal pigtail, and 3 Power Plug access connectors. With options for fixed mount and wireless control, the Yak Power Complete Kayak Power Systems help take your kayak fishing to higher levels.
Wire Gauge: 14 AWG (all models)
| Model | Includes |
| YP-RP5CS3 (5 circuit / 15-amp total current draw) | (5) Switched outlets (1) YP-RP5R Power Panel Switching System (1) YP-PMC48S Power Port with 4-ft wire – midship (2) YP-PMC96S Power Port with 8-ft wire – bow & stern (1) YP-BTP12 Battery Pigtail – 12-inch (3) YP-SAE4 Power Plug accessory connectors *Optional wireless compatibility with all Lowrance HDS Live, HDS Pro, and Elite FS series graphs |
| YP-RP5WCS3 (5 circuit / 15-amp total current draw / wireless control) |
(5) Switched outlets *Compatible with all Lowrance HDS Live, HDS Pro, and Elite FS series graphs |
| YP-RP8CS3 (8 circuit / 20-amp total current draw / wireless control) |
(8) Switched outlets |
Manufacturer's Note:
Make sure the plug-and-play connectors are completely pushed together when connecting the system together. Yak-Power uses our own custom tooled, high tolerance, very snug fitting connectors with larger gauge, real copper wire to ensure a quality, weatherproof and reliable connection.
All our plug-and-play accessories are specifically designed to work together while maintaining the correct battery polarity throughout the entire Yak-Power system. Using other aftermarket connectors or splicing other connectors into the YP system may cause damage to the system or the accessories connected to the system and may void your warranty.
Manufacturer's Caution/Warning:
Make sure to pay attention to the actual wire colors of all our accessory cables to ensure that the red (+) wire is always connecting to the red (+) wire on the connector into which it is being plugged.
If connecting a trolling motor, large LED light bar, agricultural sprayer, or other high-current electronic 12V device, you MUST use a secondary YP-LDR50 Heavy Duty relay and the correct size gauge of wire on the load side of the relay between the relay and the device you are connecting. You must also use the same size gauge of wire on the battery connection to the relay to ensure proper function and protection of your device. Please consult the specifications for the device you are connecting for proper wire sizing BEFORE installation.
