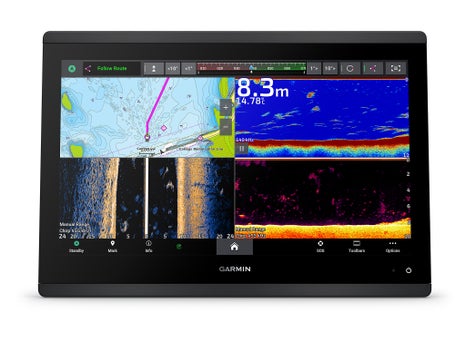

Garmin GPSMAP 16x3 Series Fishfinder 1643xsv
In Stock: 1
Price: $4999.99
  • Color: 1643xsv Stock # 010-02919-03
Note: This item is not available for order outside of the United States.

Free return shipping is available for all orders shipped within the 48 contiguous United States. These orders will include a complimentary pre-paid UPS Ground return label in the box when the order is delivered. If you use the pre-paid return label provided, please allow 7-10 business days for the return package to arrive back at Tackle Warehouse.

Orders shipped to international, APO/FPO, Alaskan or Hawaiian addresses or U.S. territories are not eligible for the free return shipping offer. Drop Ship and Oversized Items are not eligible for the free return shipping offer.

Please use our Returns & Exchange form found on the back of your printed invoice. If you don't have your original invoice you can download our Tackle Warehouse Return Form.

Contact us with any questions or concerns!

Phone: 1.800.300.4916
Email: info@tacklewarehouse.com

Tackle Warehouse wants you to be completely satisfied with your purchase. Items can be returned at any point in new condition within 365-days of the original invoice date.

Products returned in new, store-bought condition are eligible for exchange, refund, or Tackle Warehouse store credit for the full value of your purchase.

Please note that while we want you to be happy with your purchases, an excessive number of returns within a twelve-month period may limit your eligibility for refund or store credit.

Products returned beyond 365-days from the original invoice date or that are unable to be returned to stock may be eligible for store credit at the sole discretion of Tackle Warehouse.

Original shipping charges are non-refundable.

Used baits & tackle are not eligible for return.

Phone: 1.800.300.4916
Email: info@tacklewarehouse.com

Overview

Built so anglers can embrace connectivity, clarity, and control at the helm, the Garmin GPSMAP 16x3 Series Fishfinders support the same easy-to-use features from the GPSMAP x3 series but with a stunning 16” HD IPS touchscreen display. Enjoy built-in support for the full line of Livescope and Panoptix sonars, ClearVu and SideVu scanning sonars, and compatibility with your Garmin CHIRP traditional sonar transducer.

For superior clarity and sunlight readability, the GPSMAP 16×3’s in-plane switching (IPS) display provides consistent, accurate colors that are easily spotted from all viewing angles, even with polarized sunglasses. Including built-in Wi-Fi and GPS mapping for accurate positioning and smooth operation, the Garmin GPSMAP 16x3 Series Fishfinders further Garmin’s legacy of revolutionizing chart plotting and navigation for sailors, mariners, and boar enthusiasts everywhere.

Sonar Features 1643 1643xsv
Displays Sonar Yes Yes
Traditional Sonar Yes(with GCV black box, sold separately) Built-in (single channel CHIRP, 50/70/83/200 kHz, L, M, H Chirp)
ClearVu Yes(with GCV black box, sold separately) Built-in 260/455/800/1000/1200kHz
SideVu Yes(with GCV black box, sold separately) Built-in 260/455/800/1000/1200kHz
Panopitx Sonar Yes Yes
Livescope Yes Yes
Power Input 10 to 32 VDC 10 to 32 VDC
Typical Current Draw at 12 VDC 2.90A 3.61A
Maximum Current Draw at 12 VDC 3.73A 6.07A
Maximum Power Usage at 10 VDC 46.0W 74.75W

16” HD IPS Touchscreen Display – High-resolution 16” touchscreen, IPS display offers sunlight readability, and visibility for any angle, even with polarized sunglasses.

Maps and Charts – Support for mapping includes Garmin Navionics + charts with built-in Auto-Guidance+ technology, and a one-year subscription that comes with daily updates or upgrade to Garmin Navionics Vision+ cartography with premium features such as high-resolution relief shading.

Sonar Capabilities – Sonar models offer built-in Ultra High-Definition SideVu and ClearVu scanning sonars with high-contrast vivid color pallets to help distinguish fish from structure; supports optional Panoptix and LiveScope sonar devices as well as CHIRP traditional sonar.

Customizable – OEMs can customize the home screen for a brand tailor experience.

Sailing Features – Built-in Garmin SailAssist features, including laylines, race start guidance, set and drift, wind data, and more

Digital Integrations – J1939 and NMEA 2000 engine connectivity for easy integration with engines and exclusive One Helm feature for connecting to compatible third-party devices such as EmpirBus digital switching.

Seamless Connectivity – Easily build your marine system – from compatible sonar, autopilot, radars, or cameras – by using the NMEA 2000 and NMEA 0183 network connectivity and the Garmin Marine Network.

Wifi Technology – Use built-in Wi-Fi technology to pair with the free Active Captain App for access to OneChart, smart notifications, software updates, and more (requires an app on a compatible smartphone).

ANT Technology – Integrated ANT technology support for use with your compatible Quatix marine smartwatches, gWind Wireless 2 transducer, GNX Wind marine instrument, and wireless remote controls.

Built-in GPS – References 10Hz GNSS (GPS, GLONASS, and Gallileo) for accurate positioning and smooth speed as well as COG data

Force Trolling Motor Control – Get support and integration for your Force trolling motor (sold separately) to gain complete control while you fish.

General Specifications
Dimension 15.1" x 10.3" x 3.0"
Weight 9.7 lbs
Waterproof IPX7
Input Touchscreen
Display Type 13.6" x 7.7" x 15.6" diagonal
Display Resolution 1920 x 1080 pixels
Accepts Data Cards 2 microSD cards
Waypoints 5,000
Track Points 50,000
Tracks 50 Saved Tracks
Navigation Routes 100
