Overview

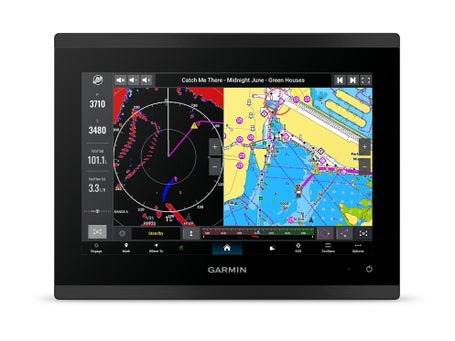

Brimming with advanced features and technology, the Garmin GPSMAP 9000xsv Series Chartplotter Fishfinder delivers incredible capability that aims to take your boating and fishing to the next level. Designed for easy touchscreen control, every model boasts edge-to-edge screen clarity with crisp displays that are easily readable from all angles, even in bright sunlight or while wearing polarized glasses. Loaded with Navionics+ and Auto Guidance+ for detailed mapping and navigation, the Garmin 9000xsv series can store 5,000 waypoints, 50,000 track points, and more. Built to be lightning fast and dependable for a superior user experience, each unit contains a processor that is up to seven times faster than previous generations and is fortified with an IPX7 water-resistant rating.
Compatible with GSD Sonar Modules and Panoptix and Livescope transducers, the Garmin 9000xsv series uses NMEA 2000 and Garmin BlueNet networks to connect with a range of other GPSMAP chartplotters, autopilots, radars, and more. Utilizing OneHelm digital switching, the 9000xsv series also puts the convenience of comprehensive vessel monitoring, automation, and control right at your fingertips. Additionally, each unit delivers enhanced multimedia streaming and video integration, compatibility with the Garmin Surround View Camera System, and can even be controlled through an optional Garmin smartwatch or headset.
Featuring integrated Wi-Fi in every model, software updates are easily installed through a compatible smartphone or tablet using the Garmin ActiveCaptain app. Whether you're venturing out on the lake or heading over the horizon in search of open-water pelagics, the Garmin GPSMAP 9000xsv Series Chartplotter Fishfinder provides a serious upgrade to your trusty vessel.
*XSV models feature built-in 1 kW xCHIRP, Garmin RapidReturn sonar, and UHD scanning sonar.
Included Accessories:
-Power cable
-Backbone/drop cable (2 meters) and T-connector for the NMEA 2000 Network
-Bail mount with knobs (9210xsv / 9210 and 9213xsv / 9213 models only)
-Flush-mount kit
-Protective cover
-Trim piece snap covers
-Documentation
Key Features:
Premium Chartplotter: The HD IPS sunlight-readable touchscreen display and edge-to-edge design provide a seamless and luxurious modern look.
Faster. Much Faster: Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes with lightning speed with a Garmin Navionics+ subscription.
High-Definition Sonar: Fish in stunning high definition with built-in 1 kW xCHIRP and Garmin RapidReturn sonar. Excellent target separation helps you see crisp and clear fish targets all around.
Garmin BlueNet Network: Build extensive networks with multiple chartplotters, cameras, radars and sonars — and enjoy gigabit-speed networking.
Entertainment Options: Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.
Connect Your Ecosystem: Take command through digital system integrations to monitor, automate and control your vessel. The chartplotter uses the NMEA 2000 network to connect to your compatible accessories.
| 9210 | 9210xsv | 9213 | 9213xsv | 9217 | 9217xsv | |
| Dimensions | 10.24" x 7.87" x 3.54" | 10.24" x 7.87" x 3.54" | 13.2" x 9.19" x 3.56" | 13.2" x 9.19" x 3.56" | 16.80" x 11.23" x 3.60" | 16.80" x 11.23" x 3.60" |
| Weight | 5.55 lbs | 5.55 lbs | 9.1 lbs | 9.1 lbs | 13 lbs | 13 lbs |
| Water Rating | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 |
| Touchscreen | Yes | Yes | Yes | Yes | Yes | Yes |
| Display Type | WUXGA, IPS; Edge Lit backlight | WUXGA, IPS; Edge Lit backlight | 4K, IPS; Mini LED (Local Dimming) backlight | 4K, IPS; Mini LED (Local Dimming) backlight | 4K, IPS; Mini LED (Local Dimming) backlight | 4K, IPS; Mini LED (Local Dimming) backlight |
| Display Size | 8.54" x 5.34" x 10.1" diagonal | 8.54" x 5.34" x 10.1" diagonal | 11.57" x 6.50" x 13.27" diagonal | 11.57" x 6.50" x 13.27" diagonal | 15.04" x 8.50" X 17.25" diagonal | 15.04" x 8.50" x 17.25" diagonal |
| Resolution | 1920 x 1200 pixels | 1920 x 1200 pixels | 3840 x 2160 pixels | 3840 x 2160 pixels | 3840 x 2160 pixels | 3840 x 2160 pixels |
| Mounting | Bail, flat, or flush | Bail, flat, or flush | Bail, flat, or flush | Bail, flat, or flush | Flat or flush | Flat or flush |
| Input | Touchscreen | Touchscreen | Touchscreen | Touchscreen | Touchscreen | Touchscreen |
| 9210 | 9210xsv | 9213 | 9213xsv | 9217 | 9217xsv | |
| Accepts Data Cards | 2 microSD cards | 2 microSD cards | 2 microSD cards | 2 microSD cards | 2 microSD cards | 2 microSD cards |
| Supports USB Card Reader | Yes | Yes | Yes | Yes | Yes | Yes |
| Waypoints | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 |
| Track Points | 50,000 | 50,000 | 50,000 | 50,000 | 50,000 | 50,000 |
| Tracks | 50 saved tracks | 50 saved tracks | 50 saved tracks | 50 saved tracks | 50 saved tracks | 50 saved tracks |
| Navigation Points | 100 | 100 | 100 | 100 | 100 | 100 |
| 9210 | 9210xsv | 9213 | 9213xsv | 9217 | 9217xsv | |
| NMEA 2000 compatible | Yes | Yes | Yes | Yes | Yes | Yes |
| NMEA 1083 compatible | Yes | Yes | Yes | Yes | Yes | Yes |
| Built-in Auto Guidance+ | Yes | Yes | Yes | Yes | Yes | Yes |
| Garmin Navionics+ Inland & Coastal | Yes | Yes | Yes | Yes | Yes | Yes |
| Tide Tables | Yes | Yes | Yes | Yes | Yes | Yes |
| Active Captain Compatible | Yes | Yes | Yes | Yes | Yes | Yes |
| Supports Voice Commands | Yes | Yes | Yes | Yes | Yes | Yes |
| Wireless Remote Compatible | Yes | Yes | Yes | Yes | Yes | Yes |
| 9210 | 9210xsv | 9213 | 9213xsv | 9217 | 9217xsv | |
| Displays Sonar | Yes | Yes | Yes | Yes | Yes | Yes |
| Traditional Sonar | Yes (with GCV black box, sold separately) | Yes (dual 1 kW) | Yes (with GCV black box, sold separately) | Yes (dual 1 kW) | Yes (with GCV black box, sold separately) | Yes (dual 1 kW) |
| Supports Built-In XCHIRP | Yes (with compatible black box sonar) | Yes | Yes (with compatible black box sonar) | Yes | Yes (with compatible black box sonar) | Yes |
| Supports Built-In Rapid Return | Yes (with compatible black box sonar) | Yes (up to 2x) | Yes (with compatible black box sonar) | Yes (up to 2x) | Yes (with compatible black box sonar) | Yes (up to 2x) |
| ClearVü | Yes (with compatible black box sonar) | Yes | Yes (with compatible black box sonar) | Yes | Yes (with compatible black box sonar) | Yes |
| SideVü | Yes (with compatible black box sonar) | Yes | Yes (with compatible black box sonar) | Yes | Yes (with compatible black box sonar) | Yes |
