Overview

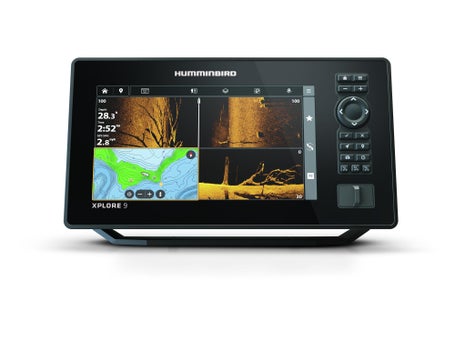

Built to deliver stunning HD imagery and unmatched clarity that makes fish appear easily, the Humminbird Xplore 9 Fishfinders feature a smarter, faster, and easy-to-use interface that allows anglers to experience fishing faster than ever. Find your fishing spots efficiently with the included LakeMaster and CoastMaster charts, an updated waypoint management system, and quick access to everything with a lightning-fast touchscreen and shortcuts to your favorite tools and technologies.
Compatible with Humminbird’s One-Boat Network, the Xplore Series Fishfinders connect seamlessly to all Minn Kota products like advanced GPS navigation and shallow water anchors for maximum operability. Offering competitive anglers easy access to epic days of fishing, the Humminbird Xplore 9 Fish finders leverage an Intuitive Cross-Touch screen and high-def display engineered for use with polarized eyewear.
Included in the box:
- XPLORE Fishfinder
- Power Cable
- Unit Cover
- Gimbal Mount w/hardware and knobs
Features:
- Intuitive Cross Touch Screen
- Quick-Launch Home Screen
- High-Def Display
- Engineered for Polarized Eyewear
- Plug& Play Minn Kota Capability
Connectivity: CE, NMEA 2000, Bluetooth, Ethernet, Wi-Fi, MFi
| Model | Xplore 9 Fish Finder CMSI+ | Xplore 9 Fish Finder CHO |
| Product Code | 412000-1 | 412000-1CHO |
| Display Size Diagonal | 9" | 9" |
| Display Pixel Matrix | 1280x720 | 1280x720 |
| Transducer Included | XM 14 HW CMSI T | N/A |
| Compatible | Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota I-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network | Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota I-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network |
| Features | Touch Screen, Networking, Down Imaging, Built In Mapping, MEGA Imaging+, WI-Fit, Mega Imaging | Touch Screen, Networking, Down Imaging, Built In Mapping, MEGA Imaging+, WI-Fit, Mega Imaging |
| Memory Card Slot | Dual Micro SD | Dual Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+ | Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+ |
| Sonar-Optional | 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low | 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low |
| CHIRP - Frequencies | Narrow Mode(180-240 kHz), Wide Mode(140-200 kHz), Full Mode (150-220 kHz) | Narrow Mode(180-240 kHz), Wide Mode(140-200 kHz), Full Mode (150-220 kHz) |
| Sonar - Frequencies Supported | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA | 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA |
| Depth - Sonar | 3,500ft (optional 50 kHz), 1,200ft (standard transducer) | 3,500ft (optional 50 kHz), 1,200ft (standard transducer) |
| CHIRP - Imaging Frequencies Supported | 455 kHz SI + (405-505 kHz) 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz) | 455 kHz SI + (405-505 kHz) 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz) |
| Depth-Down Imaging | 200ft (MEGA), 400ft (455kHz) | 200ft (MEGA), 400ft (455kHz) |
| Range-Side Imaging | 800ft (455 kHz), 250ft (MEGA) | 800ft (455 kHz), 250ft (MEGA) |
| Interface | Touch Screen, Keypad Control | Touch Screen, Keypad Control |
| Power Input | 10.8-20 VDC | 10.8-20 VDC |
| Power Output Peak-to-Peak | 8000 Watts | 8000 Watts |
| Power Output RMS | 1000 Watts | 1000 Watts |
| Screen Snap Shot | Included | Included |
| Sonar Recording | Included | Included |
| Mount-Standard | Gimbal | Gimbal |
| Mount-Standard | 11.690 in W x 6.569 in H x 3.884 in D | 11.690 in W x 6.569 in H x 3.884 in D |
| Transducer Mount Location | Transom | N/A |
| GPS Chartplotting | Included | Included |
| GPS Receiver | Internal | Internal |
| GPS Trackplotting | Not Supported | Not Supported |
| Waypoints, Routes, Tracks/Points | 10,000, 50, 50/20,000 | 10,000, 50, 50/20,000 |
