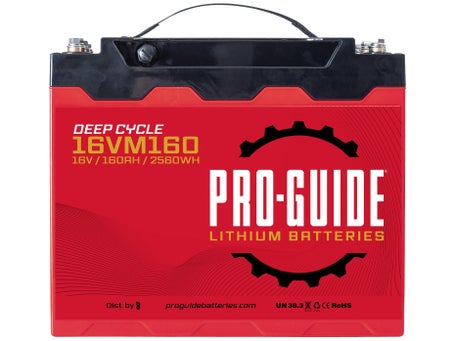

Pro-Guide 16V Alpha Deep Cycle Lithium Batteries
Overview
*This item is drop shipped from the manufacturer. No shipping outside of the contiguous United States — please see below for more details.
Ideal for powering forward-facing sonar, the Pro-Guide 16V Alpha Deep Cycle Lithium Batteries are engineered exclusively for electronics systems compatible with 16-volt inputs. Built with robust IP67 protection to effectively guard against water intrusion, each 16V Alpha Battery is fully maintenance-free and supplies a specialized 16V output delivering 160 amp-hours (2560 watt-hours). Equipped with a state-of-charge gauge on the top, the 16V Alpha Battery also includes a 200-amp battery management system with Bluetooth connectivity for remote monitoring and control through the Pro-Guide smartphone app, even when you're not in the boat. Additionally, the integrated ProBoost mode reserves 10% capacity for instant power with the push of a button.
Designed to charge rapidly so you can get back to casting and catching, 16V Alpha Batteries feature a built-in heater for efficient charging in varied temperatures. Compatible with marine networks, each battery also comes equipped with the signature Pro-Guide tri-terminal design and a removable carry handle for easy transportation. Sporting a Group-31 footprint and a 10-year warranty, the Pro-Guide 16V Alpha Deep Cycle Lithium Batteries are made for the ultimate in dependability and longevity.
*10-year manufacturer's warranty. Click HERE for more information.
Please Note:
-This item is drop shipped and cannot be shipped outside of the contiguous United States due to shipping costs.
-No C.O.D. payments for this item.
-Shipping can take 7–10 business days.
-Since items are drop shipped, shipping and delivery dates are handled by the manufacturer and are not guaranteed. Please contact the product manufacturer directly with any questions.
| Pro-Guide 16V Alpha Deep Cycle Lithium Battery | |
| Nominal Voltage | 16V |
| Nominal Capacity | 160Ah |
| Stored Energy | 2560Wh |
| Protection Level | IP67 |
| Standard Discharge Current | 18A |
| Continuous Discharge Current | 90A |
| Discharge Cut Off Voltage | 20V |
| Charge Cut Off Voltage | 28.8V |
| Standard Charge Current | 10–18A |
| Max Continuous Charge Current | 45A |
| Self Discharge | 1–3% per month |
| Cycle Life | >3000 times @ 100% DOD >6000 times @ 80% DOD |
| Terminal Type | 3x internal thread (M8) |
| Bluetooth | Enabled |
| Heating | Enabled |
| NMEA 2000 | Compatible |
| Sleep Timer | Will not enter sleep mode until it reaches 10–20% or is turned off manually |
| Weight and Size | |
| Weight | 44.09lbs |
| Group Size | 31 (tall) |
| Dimensions (L x W x H) | 13.07" x 6.93" x 10.83" |
| Temperature Specifications | |
| Charging Temperature | -4F to 131F |
| Discharging Temperature | -4F to 140F |
| Storage Temperature | (3 months) 23F to 113F (1 year) 23F to 113F |
