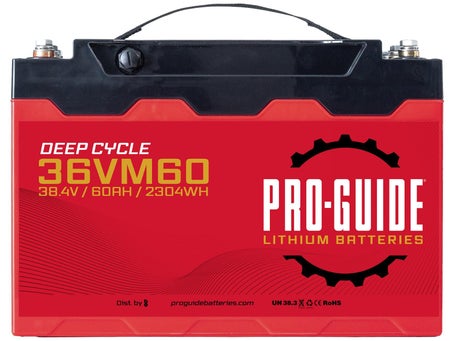

Pro-Guide Alpha Deep Cycle Lithium Batteries

Overview
*This item is drop shipped from the manufacturer. No shipping outside of the contiguous United States — please see below for more details.
Delivering up to 67% more usable energy, the Pro-Guide Alpha Deep Cycle Lithium Batteries are perfectly suited for use with trolling motors and other demanding deep-cycle applications. Sporting the signature tri-terminal design, Alpha Lithium Batteries are available in 24 or 36-volt options providing up to 115 amp-hours (2944 watt-hours) for powering through the longest days on the water. To make battery monitoring a snap whether on or off your vessel, the state-of-charge gauge on the top of the battery is complemented by an integrated battery management system with Bluetooth connectivity for linking to the Pro-Guide smartphone app.
Boasting maintenance-free performance made to handle demanding marine environments, each battery features IP67 protection to guard against moisture intrusion for the ultimate long-term dependability. Featuring a built-in heater for quick charging throughout a range of temperatures, Alpha Lithium Batteries also come with ProBoost mode that reserves 10% capacity for uninterrupted power with a simple button push. Compatible with marine networks and topped with a removable handle, Pro-Guide Alpha Deep Cycle Lithium Batteries pack a ton of features, reliability, and convenience into a Group-31 footprint.
*10-year manufacturer's warranty. Click HERE for more information.
Please Note:
-This item is drop shipped and cannot be shipped outside of the contiguous United States due to shipping costs.
-No C.O.D. payments for this item.
-Shipping can take 7–10 business days.
-Since items are drop shipped, shipping and delivery dates are handled by the manufacturer and are not guaranteed. Please contact the product manufacturer directly with any questions.
Pro-Guide Alpha Deep Cycle Lithium Batteries | 24V 90Ah (PGL24VM90) | 24V 115Ah (PGL24VM115) |
36V 60Ah (PGL36VM60) |
36V 75Ah (PGL36VM75) |
Nominal Voltage | 25.6V | 25.6V | 38.4V | 38.4V |
Nominal Capacity | 90Ah | 115Ah | 60Ah | 75Ah |
Stored Energy | 2304Wh | 2944Wh | 2304Wh | 2880Wh |
Protection Level | IP67 | IP67 | IP67 | IP67 |
Standard Discharge Current | 18A | 23A | 12A | 15A |
Continuous Discharge Current | 90A | 100A | 60A | 75A |
Discharge Cut Off Voltage | 20V | 20V | 30V | 30V |
Charge Cut Off Voltage | 28.8V | 28.8V | 43.2V | 43.2V |
Standard Charge Current | 10–18A | 10–23A | 10–12A | 10–15A |
Max Continuous Charge Current | 45A | 57.5A | 30A | 37.5A |
Self Discharge | 1–3% per month | 1–3% per month | 1–3% per month | 1–3% per month |
Cycle Life | >3000 times @ 100% DOD >6000 times @ 80% DOD |
>3000 times @ 100% DOD >6000 times @ 80% DOD |
>3000 times @ 100% DOD >6000 times @ 80% DOD |
>3000 times @ 100% DOD >6000 times @ 80% DOD |
Terminal Type | 3x internal thread (M8) | 3x internal thread (M8) | 3x internal thread (M8) | 3x internal thread (M8) |
Bluetooth | Enabled | Enabled | Enabled | Enabled |
Heating | Enabled | Enabled | Enabled | Enabled |
NMEA 2000 | Compatible | Compatible | Compatible | Compatible |
Sleep Timer | Will not enter sleep mode until it reaches 10–20% or is turned off manually | Will not enter sleep mode until it reaches 10–20% or is turned off manually | Will not enter sleep mode until it reaches 10–20% or is turned off manually | Will not enter sleep mode until it reaches 10–20% or is turned off manually |
Weight and Size | 24V 90Ah (PGL24VM90) | 24V 115Ah (PGL24VM115) |
36V 60Ah (PGL36VM60) |
36V 75Ah (PGL36VM75) |
Weight | 41.89lbs | 52.91lbs | 44.09lbs | 50.71lbs |
Group Size | 31 | 31 (tall) | 31 | 31 (tall) |
Dimensions (L x W x H) | 13.07" x 6.93" x 8.9" | 13.07" x 6.93" x 10.83" | 13.07" x 6.93" x 8.9" | 13.07" x 6.93" x 10.83" |
Temperature Specifications | 24V 90Ah (PGL24VM90) | 24V 115Ah (PGL24VM115) |
36V 60Ah (PGL36VM60) |
36V 75Ah (PGL36VM75) |
Charging Temperature | -4F to 131F | -4F to 131F | -4F to 131F | -4F to 131F |
Discharging Temperature | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F |
Storage Temperature |
(3 months) 23F to 113F |
(3 months) 23F to 113F (1 year) 23F to 113F |
(3 months) 23F to 113F (1 year) 23F to 113F |
(3 months) 23F to 113F (1 year) 23F to 113F |
